Klemmverschraubung für Multilayer

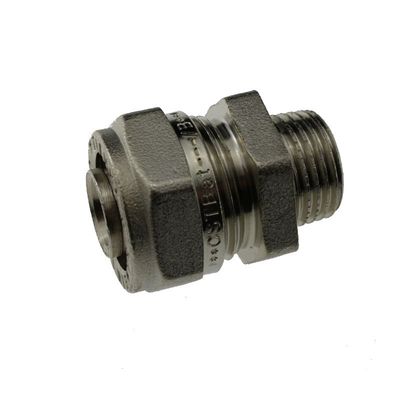

Puntstuk
Puntstuk

Einschrauber AG

Male Adapter
Artikelnummer
1600N001603
1600N001604
1600N001605
1600N001804
1600N001805
1600N002004
1600N002005
1600N002505
1600N002506
1600N002605
1600N002606
1600N003206
Maat / Größe / Size
16 mm x 3/8"
16 mm x 1/2"
16 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
20 mm x 1/2"
20 mm x 3/4"
25 mm x 3/4"
25 mm x 1"
26 mm x 3/4"
26 mm x 1"
32 mm x 1"

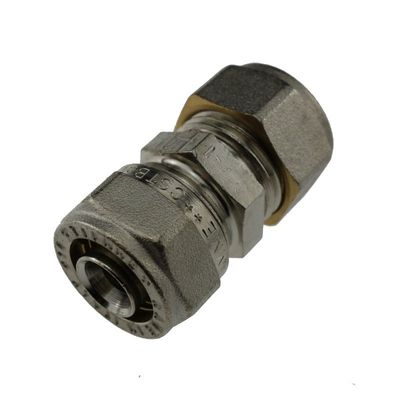

Sok
Sok

Gerader Verbinder

Straight Fitting
Artikelnummer
1601N161600
1601N181800
1601N201600
1601N202000
1601N252500
1601N262000
1601N262600
1601N323200
Maat / Größe / Size
16 mm x 16 mm
18 mm x 18 mm
20 mm x 16 mm
20 mm x 20 mm
25 mm x 25 mm
26 mm x 20 mm
26 mm x 26 mm
32 mm x 32 mm

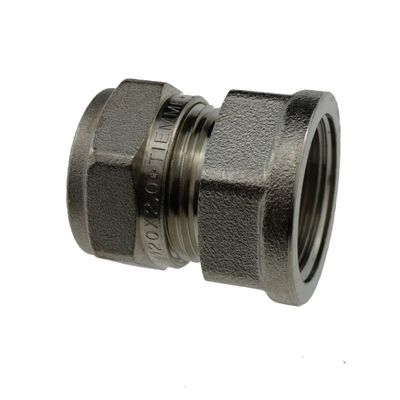

Schroefbus
Schroefbus

Aufschrauber IG

Female Adapter
Artikelnummer
1602N001604
1602N001605
1602N001804
1602N001805
1602N002004
1602N002005
1602N002505
1602N002506
1602N002605
1602N002606
1602N003206
Maat / Größe / Size
16 mm x 1/2"
16 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
20 mm x 1/2"
20 mm x 3/4"
25 mm x 3/4"
25 mm x 1"
26 mm x 3/4"
26 mm x 1"
32 mm x 1"

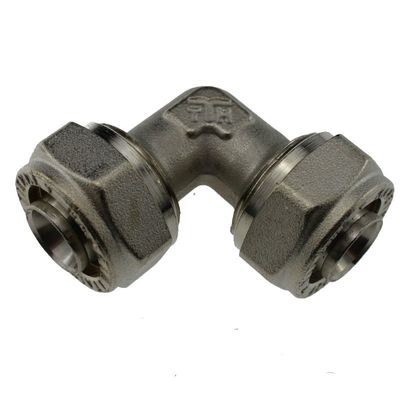

Knie 90°
Knie 90°

Winkel 90°

Elbow 90°
Artikelnummer
1603N161600
1603N181800
1603N202000
1603N252500
1603N262600
1603N323200
Maat / Größe / Size
16 mm x 16 mm
18 mm x 18 mm
20 mm x 20 mm
25 mm x 25 mm
26 mm x 26 mm
32 mm x 32 mm

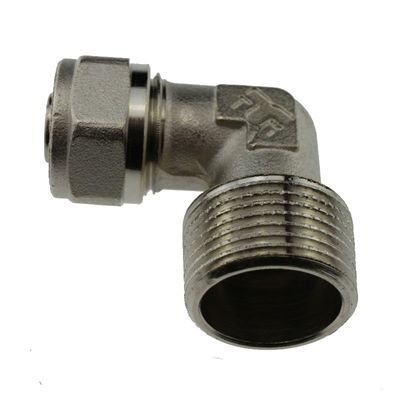

Puntstuk haaks
Puntstuk haaks

Winkel AG

Male Elbow
Artikelnummer
1604N001604
1604N001605
1604N001804
1604N001805
1604N002004
1604N002005
1604N002505
1604N002506
1604N002605
1604N002606
1604N003206
Maat / Größe / Size
16 mm x 1/2"
16 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
20 mm x 1/2"
20 mm x 3/4"
25 mm x 3/4"
25 mm x 1"
26mm x 3/4"
26mm x 1"
32mm x 1"

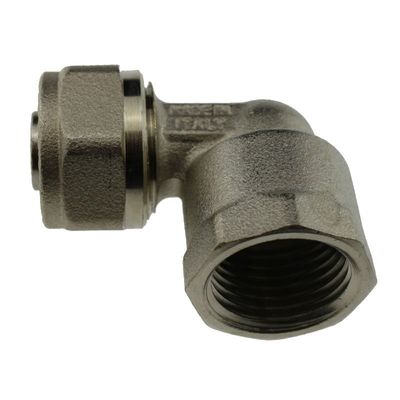

Schroefbus haaks
Schroefbus haaks

Winkel IG

Female Elbow
Artikelnummer
1605N001604
1605N001605
1605N001804
1605N001805
1605N002004
1605N002005
1605N002505
1605N002506
1605N002605
1605N002606
1605N003206
Maat / Größe / Size
16 mm x 1/2"
16 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
20 mm x 1/2"
20 mm x 3/4"
25 mm x 3/4"
25 mm x 1"
26 mm x 3/4"
26 mm x 1"
32 mm x 1"

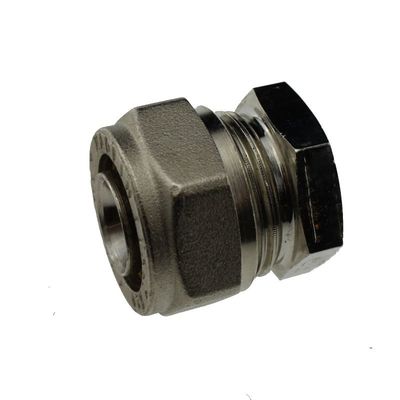

Eindkap
Eindkap

Endkappe

Endcap
Artikelnummer
1611N0016
1611N0020
Maat / Größe / Size
16 mm
20 mm

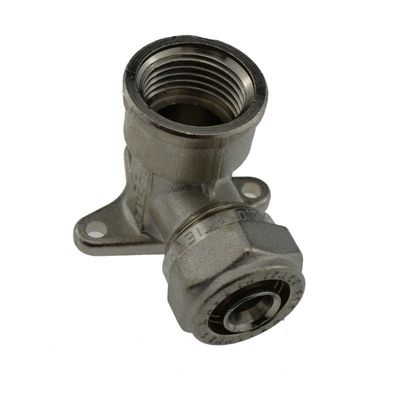

Muurplaat
Muurplaat

Wandwinkel

Wallplate
Artikelnummer
1606N001604
1606N001605
1606N001804
1606N001805
1606N002004
1606N002005
Maat / Größe / Size
16 mm x 1/2"
16 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
20 mm x 1/2"
20 mm x 3/4"

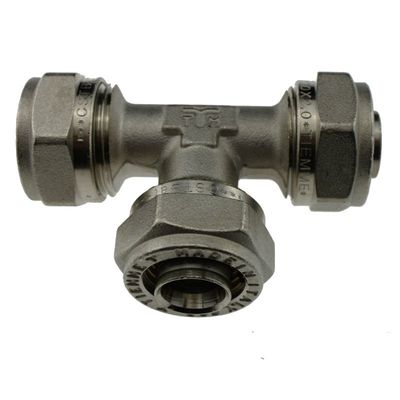

T-stuk
T-Stuk

T-Stück

T-Union
Artikelnummer
1607N161616
1607N162016
1607N181618
1607N181818
1607N201616
1607N201620
1607N202016
1607N202020
1607N202620
1607N252525
1607N261626
1607N262020
1607N262026
1607N262620
1607N262626
1607N322032
1607N322626
1607N322632
1607N323232
Maat / Größe / Size
16 mm x 16 mm x 16 mm
16 mm x 20 mm x 16 mm
18 mm x 16 mm x 18 mm
18 mm x 18 mm x 18 mm
20 mm x 16 mm x 16 mm
20 mm x 16 mm x 20 mm
20 mm x 20 mm x 16 mm
20 mm x 20 mm x 20 mm
20 mm x 26 mm x 20 mm
25 mm x 25 mm x 25 mm
26 mm x 16 mm x 26 mm
26 mm x 20 mm x 20 mm
26 mm x 20 mm x 26 mm
26 mm x 26 mm x 20 mm
26 mm x 26 mm x 26 mm
32 mm x 20 mm x 32 mm
32 mm x 26 mm x 26 mm
32 mm x 26 mm x 32 mm
32 mm x 32 mm x 32 mm

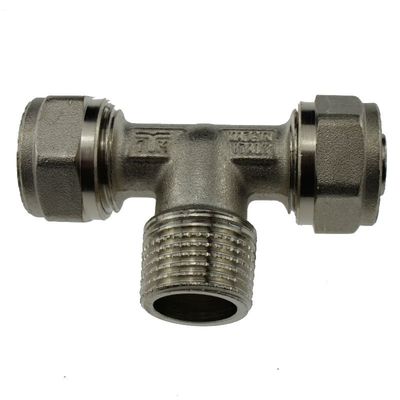

T-Stuk buitendraad
T-Stuk buitendraad

T-Stück AG

T-Union Male
Artikelnummer
1608N160416
1608N180418
1608N180518
1608N200420
1608N200520
1608N250525
1608N250625
1608N260526
1608N260626
1608N320632
Maat / Größe / Size
16 mm x 1/2" x 16 mm
18 mm x 1/2" x 18 mm
18 mm x 3/4" x 18 mm
20 mm x 1/2" x 20 mm
20 mm x 3/4" x 20 mm
25 mm x 3/4" x 25 mm
25 mm x 1" x 25 mm
26 mm x 3/4" x 26 mm
26 mm x 1" x 26 mm
32 mm x 1" x 32 mm

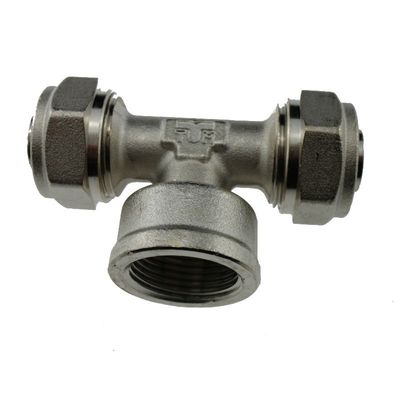

T-Stuk binnendraad
T-Stuk binnendraad

T-Stück IG

T-Union Female

Artikelnummer
1609N160416
1609N180418
1609N180518
1609N200420
1609N200520
1609N250525
1609N250625
1609N260526
1609N260626
1609N320632
Maat / Größe / Size
16 mm x 1/2" x 16 mm
18 mm x 1/2" x 18 mm
18 mm x 3/4" x 18 mm
20 mm x 1/2" x 20 mm
20 mm x 3/4" x 20 mm
25 mm x 3/4" x 25 mm
25 mm x 1" x 25 mm
26 mm x 3/4" x 26 mm
26 mm x 1" x 26 mm
32 mm x 1" x 32 mm

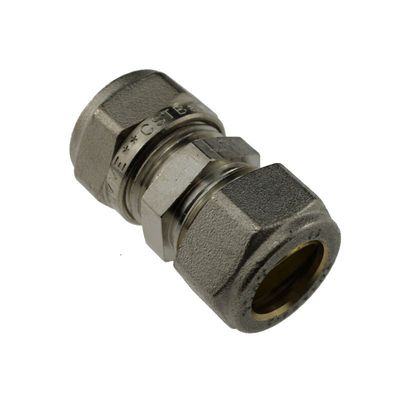

Adapter Multilayer koper
Adapter Multilayer Koper

Übergangsverbinder Kupfer

Adapter Multilayer Coper

Artikelnummer
R1600145
Maat / Größe / Size
16 mm x 15 mm
Kruisstuk

Kreuzverbinder

Cross
Artikelnummer
1610N16161616
1610N18181818
1610N20202020

Maat / Größe / Size
16 mm x 16 mm x 16 mm x 16 mm
18 mm x 18 mm x 18 mm x 18 mm
20 mm x 20 mm x 20 mm x 20 mm
Technische Daten:
Druck
Temperatur

Max 16 bar bei 20°C
Min 0°C Max 95°C
