Roswel/Draad RVS

Pressverbinder Edelstahlt Verzinkt

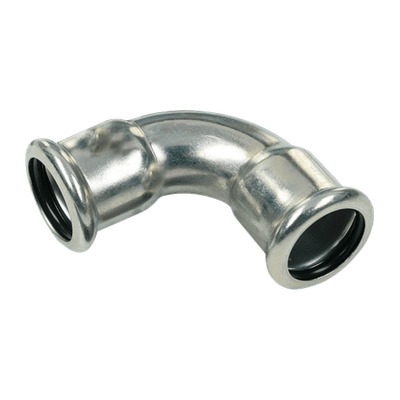

Stroombocht 90° I/I

Pressfittings Bogen 90° IG / IG

Press Fitting Elbow 90° I/I

Artikelnummer
RPK200405
RPK200410
RPK200415
RPK200420
RPK200425
RPK200430
RPK200435
RPK200440
RPK200445
RPK200450

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

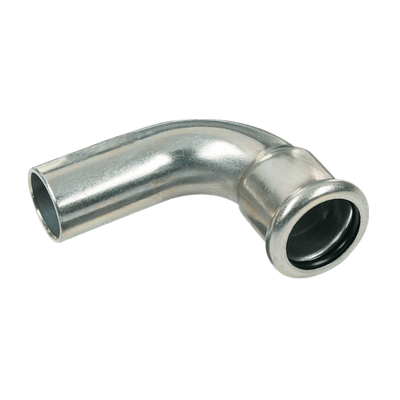

Insteekstroombocht 90° I/A

Pressfittings Bogen 90° IG / AG

Press Fitting Elbow 90° I/A

Artikelnummer
RPK200505
RPK200510
RPK200515
RPK200520
RPK200525
RPK200530
RPK200535
RPK200540
RPK200545
RPK200550

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

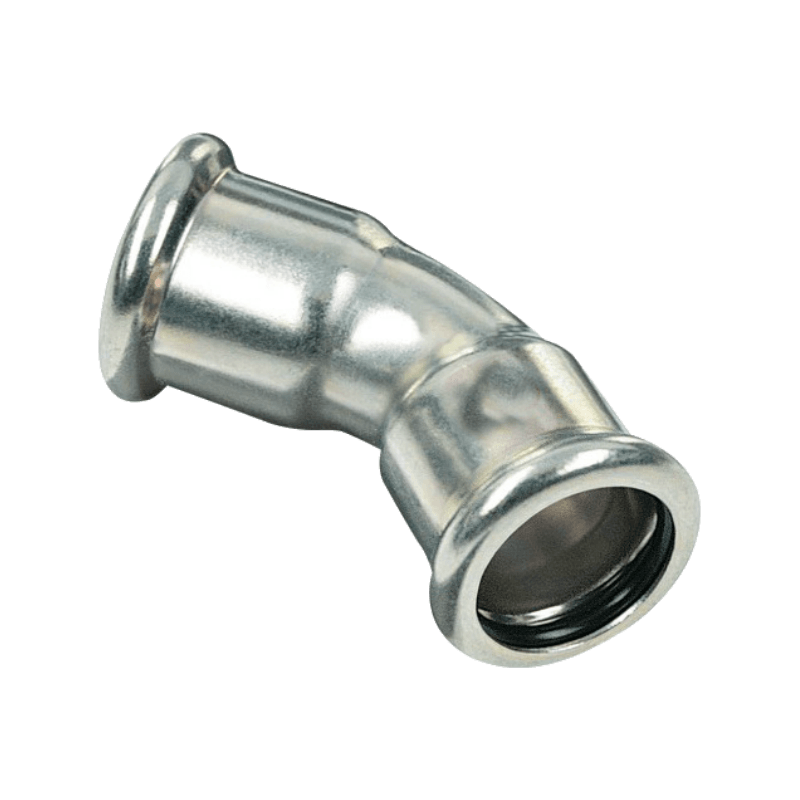

Stroombocht 45° I/I

Pressfittings Bogen 45° IG / IG

Press Fitting Elbow 45° I/I

Artikelnummer
RPK200605
RPK200610
RPK200615
RPK200620
RPK200625
RPK200630
RPK200635
RPK200640
RPK200645
RPK200650

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

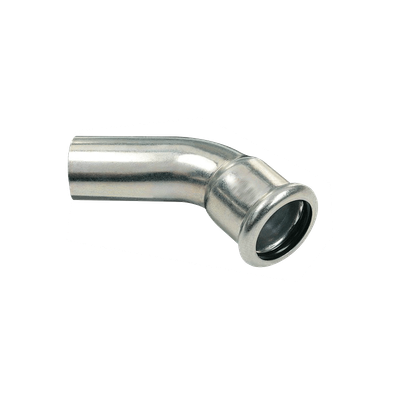

Insteekstroombocht 45° I/A

Pressfittings Bogen 45° IG / AG

Press Fitting Elbow 45° I/A

Artikelnummer
RPK200705
RPK200710
RPK200715
RPK200720
RPK200725
RPK200730
RPK200735
RPK200740
RPK200745
RPK200750

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

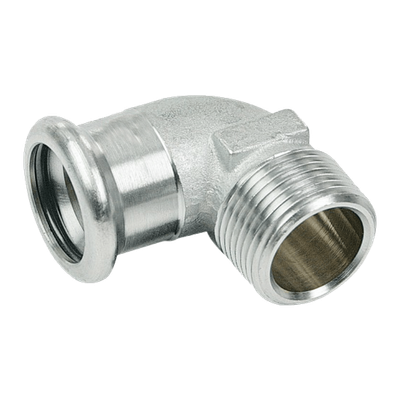

Puntstuk haaks

Übergangswinkel 90° AG

Male Elbow

Artikelnummer

RPK201505

RPK201510

RPK201525

RPK201530

RPK201535

RPK201540

RPK201545

Maat / Größe / Size

15 mm x 1/2"

18 mm x 1/2"

22 mm x 3/4"

28 mm x 1"

35 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 2"

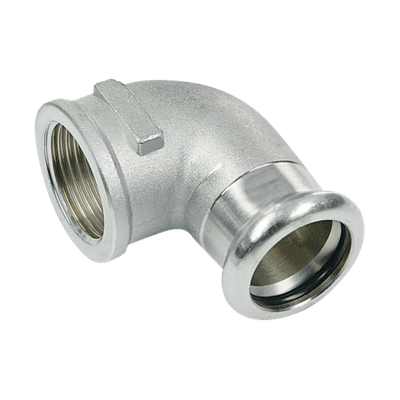

Schroefbus haaks

Übergangswinkel 90° IG

Female Elbow

Artikelnummer
RPK201605
RPK201610
RPK201615
RPK201620
RPK201625

Maat / Größe / Size

15 mm x 1/2"

18 mm x 1/2"

22 mm x 3/4"

28 mm x 1"

35 mm x 1 1/4"

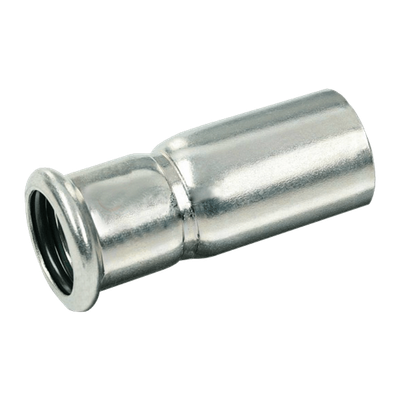

Reduceerstuk

Pressfitings Reduzierstück

Reducer

Artikelnummer
RPK200305
RPK200310
RPK200315
RPK200320
RPK200325
RPK200330
RPK200335
RPK200340
RPK200345
RPK200350
RPK200355
RPK200360
RPK200365
RPK200371
RPK200374
RPK200376
RPK200378
RPK200380
RPK200382
RPK200384
RPK200386
RPK200390
RPK200392
RPK200394
RPK200396
RPK200398
RPK200399

Maat / Größe / Size

18 mm x 15 mm

22 mm x 15 mm

22 mm x 18 mm

28 mm x 15 mm

28 mm x 18 mm

28 mm x 22 mm

35 mm x 15 mm

35 mm x 18 mm

35 mm x 22 mm

35 mm x 28 mm

42 mm x 15 mm

42 mm x 18 mm

42 mm x 22 mm

42 mm x 28 mm

42 mm x 35 mm

54 mm x 15 mm

54 mm x 18 mm

54 mm x 22 mm

54 mm x 28 mm

54 mm x 35 mm

54 mm x 42 mm

76 mm x 54 mm

88,9 mm x 54 mm

88,9 mm x 76,1 mm

108 mm x 54 mm

108 mm x 76,1 mm

108 mm x 88,9 mm

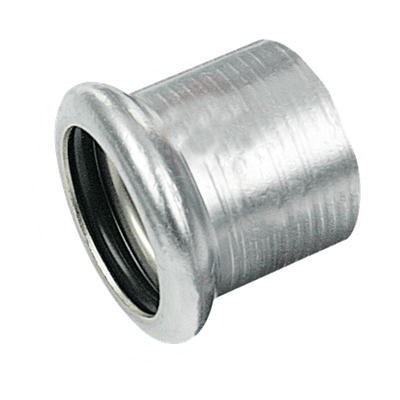

Eindkap

Pressfittings Verschlußstopfen

End piece

Artikelnummer
RPK202605
RPK202610
RPK202615
RPK202620
RPK202625
RPK202630
RPK202635
RPK202640
RPK202645
RPK202650

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

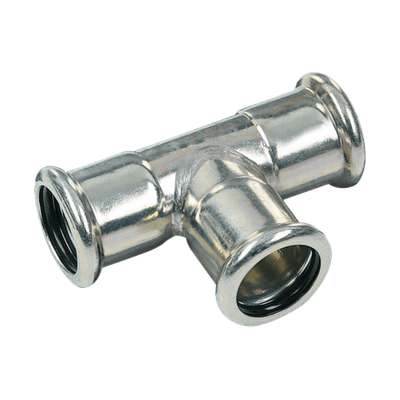

T-Stuk

Pressfittings T-Stück

T-Fitting

Artikelnummer
RPK202005
RPK202010
RPK202015
RPK202020
RPK202025
RPK202030
RPK202035
RPK202040
RPK202045
RPK202050

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

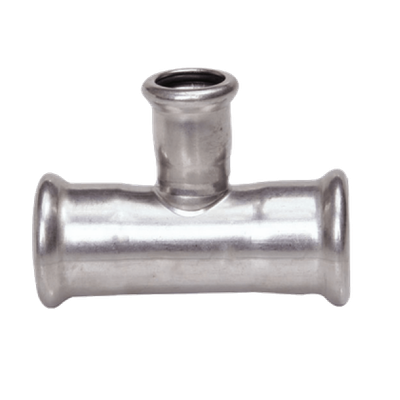

T-Stuk reduceer

Pressfittings T-Stück reduziert

T-Reducer

Artikelnummer

RPK202102

RPK202104

RPK202106

RPK202108

RPK202110

RPK202112

RPK202114

RPK202116

RPK202118

RPK202120

RPK202122

RPK202124

RPK202126

RPK202128

RPK202130

RPK202132

RPK202134

RPK202136

RPK202138

RPK202140

RPK202142

RPK202144

RPK202146

RPK202148

RPK202150

RPK202152

RPK202155

RPK202156

RPK202157

RPK202158

RPK202159

RPK202160

RPK202165

RPK202166

RPK202167

RPK202168

RPK202169

RPK202170

RPK202171

Maat / Größe / Size

18 mm x 15 mm x 18 mm

22 mm x 15 mm x 22 mm

22 mm x 18 mm x 22 mm

28 mm x 15 mm x 28 mm

28 mm x 18 mm x 28 mm

28 mm x 22 mm x 28 mm

35 mm x 15 mm x 35 mm

35 mm x 18 mm x 35 mm

35 mm x 22 mm x 35 mm

35 mm x 28 mm x 35 mm

42 mm x 15 mm x 42 mm

42 mm x 18 mm x 42 mm

42 mm x 22 mm x 42 mm

42 mm x 28 mm x 42 mm

42 mm x 35 mm x 42 mm

54 mm x 15 mm x 54 mm

54 mm x 18 mm x 54 mm

54 mm x 22 mm x 54 mm

54 mm x 28 mm x 54 mm

54 mm x 35 mm x 54 mm

54 mm x 42 mm x 54 mm

76,1 mm x 22 mm x 76,1 mm

76,1 mm x 28 mm x 76,1 mm

76,1 mm x 35 mm x 76,1 mm

76,1 mm x 42 mm x 76,1 mm

76,1 mm x 54 mm x 76,1 mm

88,9 mm x 22 mm x 88,9 mm

88,9 mm x 28 mm x 88,9 mm

88,9 mm x 35 mm x 88,9 mm

88,9 mm x 42 mm x 88,9 mm

88,9 mm x 54 mm x 88,9 mm

88,9 mm x 76,1 mm x 88,9 mm

108 mm x 22 mm x 108 mm

108 mm x 28 mm x 108 mm

108 mm x 35 mm x 108 mm

108 mm x 42 mm x 108 mm

108 mm x 54 mm x 108 mm

108 mm x 76,1 mm x 108 mm

108 mm x 88,9 mm x 108 mm

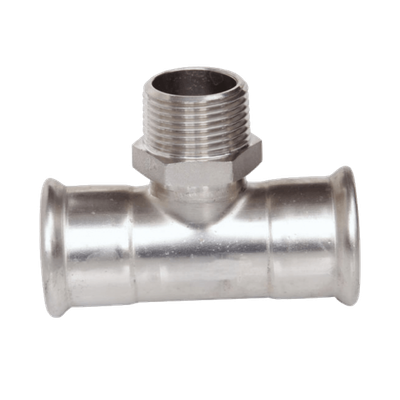

T-Stuk buitendraad

Pressfittings T-Stück AG

T-Female

Artikelnummer
RPK202305
RPK202310
RPK202315
RPK202320
RPK202325
RPK202330
RPK202335
RPK202340
RPK202345

Maat / Größe / Size

15 mm x 1/2" x 15 mm

18 mm x 1/2" x 18 mm

22 mm x 1/2" x 22 mm

22 mm x 3/4" x 22 mm

22 mm x 1" x 22 mm

28 mm x 1/2" x 28 mm

28 mm x 1" x 28 mm

35 mm x 3/4" x 35 mm

35 mm x 1 1/4" x 35 mm

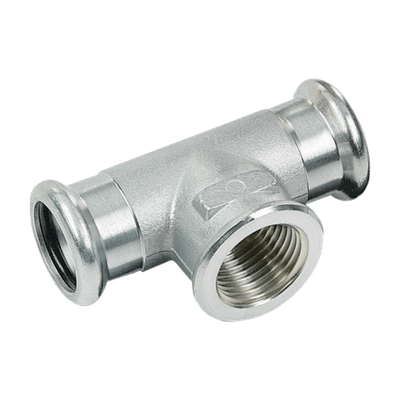

T-Stuk

Pressfittings T-Stück IG

T-Female

Artikelnummer

RPK202205

RPK202210

RPK202211

RPK202215

RPK202216

RPK202220

RPK202221

RPK202222

RPK202225

RPK202226

RPK202228

RPK202227

RPK202230

RPK202231

RPK202233

RPK202232

RPK202235

RPK202234

RPK202233

RPK202236

RPK202270

RPK202271

RPK202275

RPK202276

RPK202280

RPK202298

Maat / Größe / Size

15 mm x 1/2" x 15 mm

18 mm x 1/2" x 18 mm

18 mm x 3/4" x 18 mm

22 mm x 1/2" x 22 mm

22 mm x 3/4" x 22 mm

28 mm x 1/2" x 28 mm

28 mm x 3/4" x 28 mm

28 mm x 1" x 28 mm

35 mm x 1/2" x 35 mm

35 mm x 3/4" x 35 mm

35 mm x 1" x 35 mm

35 mm x 1 1/4" x 35 mm

42 mm x 1/2" x 42 mm

42 mm x 3/4" x 42 mm

42 mm x 1" x 42 mm

42 mm x 1 1/2" x 42 mm

54 mm x 1/2" x 54 mm

54 mm x 3/4" x 54 mm

54 mm x 1" x 54 mm

54 mm x 2" x 54 mm

76.1 mm x 3/4" x 76 mm

76.1 mm x 2" x 76 mm

88,9 mm x 3/4" x 88,9 mm

88,9 mm x 2" x 88,9 mm

108 mm x 3/4" x 108 mm

108 mm x 2" x 108 mm

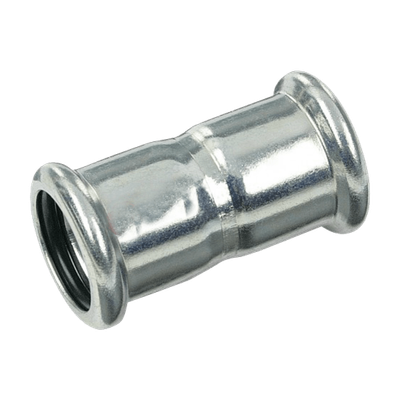

Sok

Pressfittings Muffe IG / IG

Straight Union

Artikelnummer
RPK200105
RPK200110
RPK200115
RPK200120
RPK200125
RPK200130
RPK200135
RPK200140
RPK200145
RPK200150

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

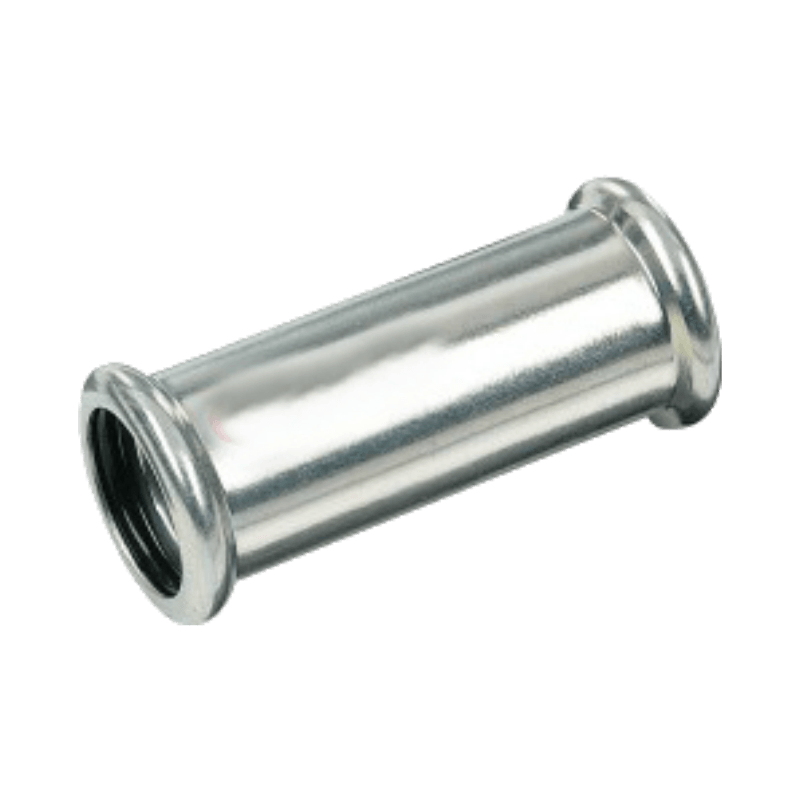

Overschuifkoppeling

Pressfittings Schiebemuffe IG / IG

Sleeve

Artikelnummer
RPK200205
RPK200210
RPK200215
RPK200220
RPK200225
RPK200230
RPK200235
RPK200240
RPK200245
RPK200250

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

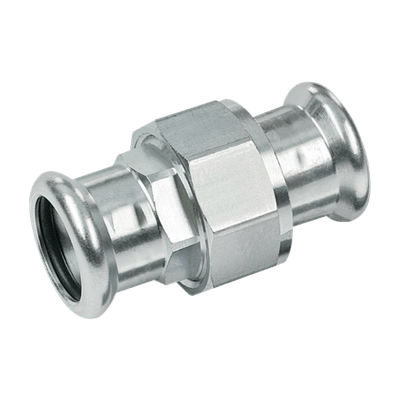

3D Koppeling 2 x pers

Durchgangsverschraubung

3D Union Press

Artikelnummer
RPK203105
RPK203110
RPK203115
RPK203120
RPK203125
RPK203130
RPK203135

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm

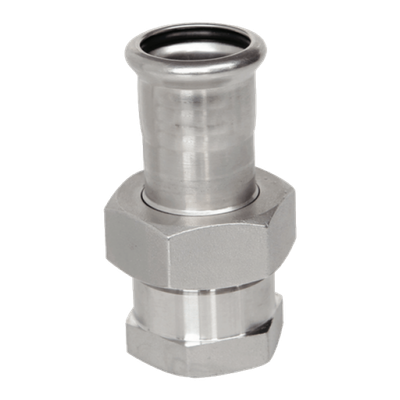

3D Koppeling binnendraad

Durchgangsverschraubung IG

3D Union Female

Artikelnummer

RPK202905

RPK202906

RPK202910

RPK202911

RPK202925

RPK202926

RPK202935

RPK202940

RPK202945

RPK202950

Maat / Größe / Size

15 mm x 1/2"

15 mm x 3/4"

18 mm x 1/2"

18 mm x 3/4"

22 mm x 3/4"

22 mm x 1"

28 mm x 1"

35 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 2"

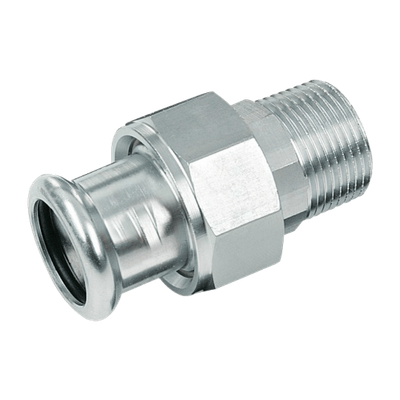

3D Koppeling buitendraad

Durchgangsverschraubung AG

3D Union Male

Artikelnummer
RPK203005
RPK203006
RPK203010
RPK203011
RPK203029
RPK203030
RPK203031
RPK203040
RPK203045
RPK203050
RPK203055

Maat / Größe / Size

15 mm x 1/2"

15 mm x 3/4"

18 mm x 1/2"

18 mm x 3/4"

22 mm x 1/2"

22 mm x 3/4"

22 mm x 1"

28 mm x 1"

35 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 2"

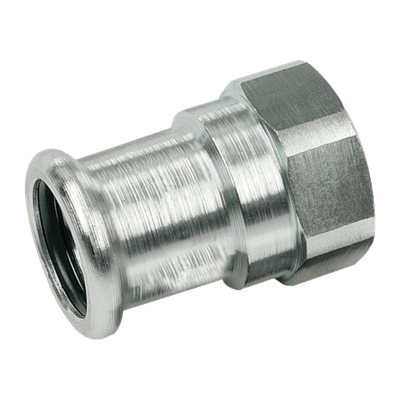

Schroefbus

Übergangsmuffe IG

Female Adapter

Artikelnummer
RPK200805
RPK200820
RPK200810
RPK200825
RPK200815
RPK200830
RPK200840
RPK200835
RPK200845
RPK200855
RPK200850
RPK200860
RPK200870
RPK200865
RPK200875
RPK200880
RPK200885
RPK200886

Maat / Größe / Size

15 mm x 1/2"

15 mm x 3/4"

18 mm x 1/2"

18 mm x 3/4"

22 mm x 1/2"

22 mm x 3/4"

22 mm x 1"

28 mm x 3/4"

28 mm x 1"

28 mm x 1 1/4"

35 mm x 1"

35 mm x 1 1/4"

35 mm x 1 1/2"

42 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 1 1/2"

54 mm x 2"

76 mm x 2 1/2"

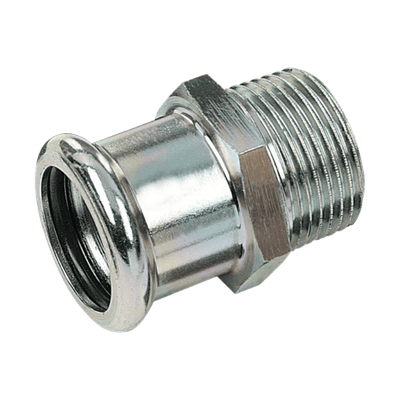

Puntstuk

Übergangsstück AG

Male Adapter

Artikelnummer

RPK200910

RPK200925

RPK200915

RPK200923

RPK200920

RPK200935

RPK200945

RPK200940

RPK200950

RPK200960

RPK200955

RPK200965

RPK200975

RPK200970

RPK200980

RPK200985

RPK200990

RPK200995

RPK200998

RPK200999

Maat / Größe / Size

15 mm x 1/2"

15 mm x 3/4"

18 mm x 1/2"

18 mm x 3/4"

22 mm x 1/2"

22 mm x 3/4"

22 mm x 1"

28 mm x 3/4"

28 mm x 1"

28 mm x 1 1/4"

35 mm x 1"

35 mm x 1 1/4"

35 mm x 1 1/2"

42 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 1 1/2"

54 mm x 2"

76 mm x 2 1/2"

88,9 mm x 3"

108 mm x 4"

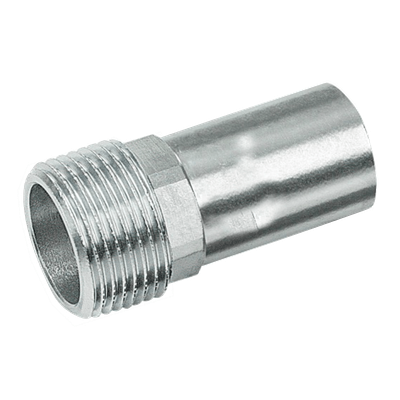

Puntstuk Capilair

Pressfittings Einsteckende mit AG

Male Adapter Capilair

Artikelnummer
RPK201005
RPK201010
RPK201015
RPK201020
RPK201025
RPK201030
RPK201035

Maat / Größe / Size

15 mm x 1/2"

18 mm x 1/2"

22 mm x 3/4"

28 mm x 1"

35 mm x 1 1/4"

42 mm x 1 1/2"

54 mm x 2"

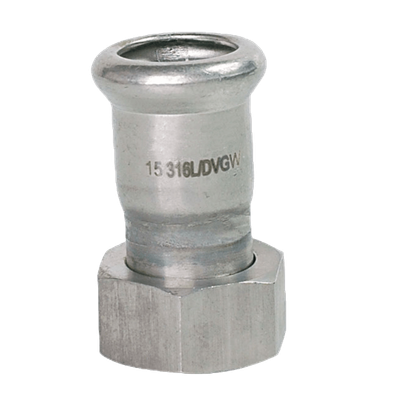

Wartelkoppeling binnendraad

Pressfittings Anschlussverschraubung

Connection Fitting

Artikelnummer

RPK202804

RPK202805

RPK202809

RPK202810

RPK202815

RPK202824

RPK202825

RPK202830

RPK202835

RPK202840

Maat / Größe / Size

OD 15 mm x G 1/2"

OD 15 mm x G 3/4"

OD 18 mm x G 1/2"

OD 18 mm x G 3/4"

OD 22 mm x G 1"

OD 28 mm x G 1"

OD 28 mm x G 1 1/4"

OD 35 mm x G 1 1/2"

OD 42 mm x G 1 3/4"

OD 54 mm x G 2 3/8"

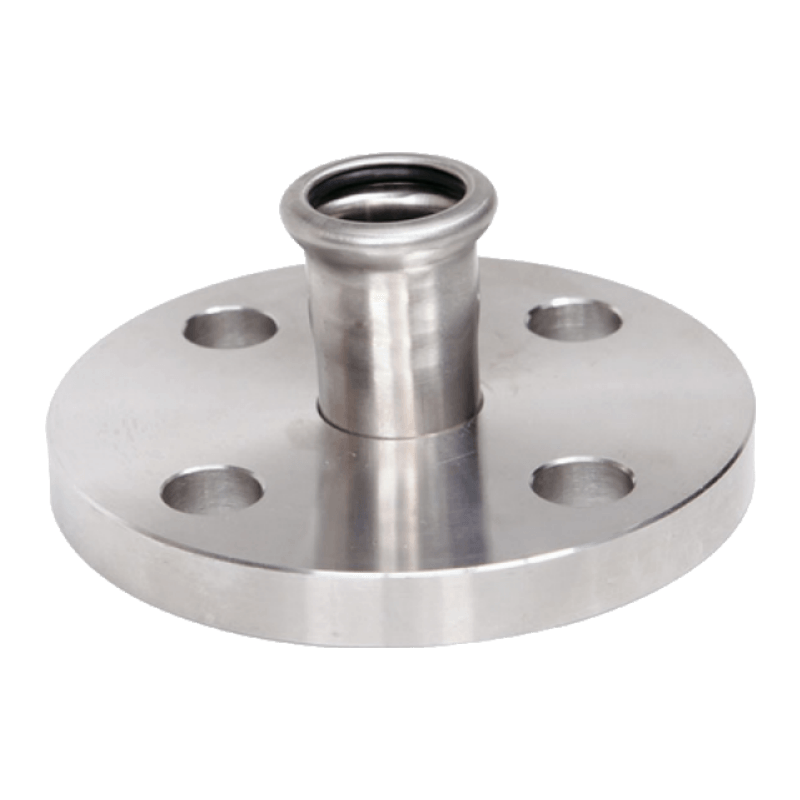

Flens

Pressfittings Übergangsflansch

Flange

Artikelnummer
RPK202505
RPK202510
RPK202515
RPK202520
RPK202525
RPK202530
RPK202535
RPK202540
RPK202545
RPK202550

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm
35 mm
42 mm
54 mm
76 mm
89 mm
108 mm

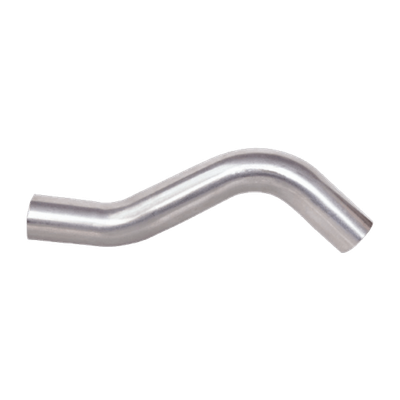

Passerbocht

Pressfittings Sprungbogen

Passing Elbow

Artikelnummer
RPK203805
RPK203810
RPK203815
RPK203820

Maat / Größe / Size
15 mm
18 mm
22 mm
28 mm

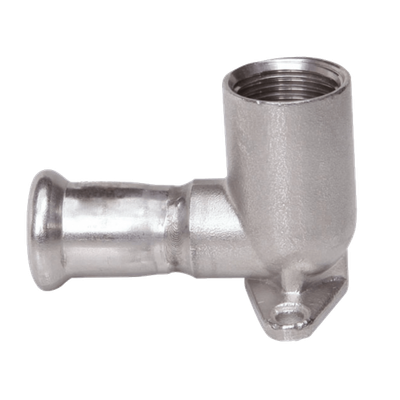

Muurplaat

Pressfittings Deckenwinkel 90° IG

Wallplate

Artikelnummer
RPK201805
RPK201810
RPK201815

Maat / Größe / Size

15 mm x 1/2"

18 mm x 1/2"

22 mm x 3/4"

Technische Daten:

Druck

Temperatur

Max 16 bar bei 20°C

Min 10°C Max 110°C
